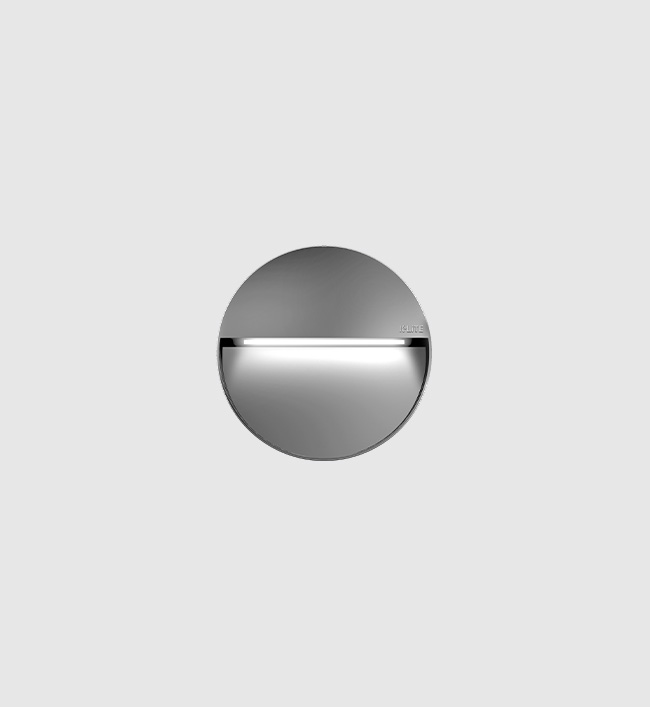

Zedo Round
Asymmetrical surface mount floor washer with a wide beam for glare free illumination of pathways, entrances etc. Sustainable LED technology offers durability and optimal light output with lower power consumption.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive A2 stainless steel fasteners.
• Non yellowing UV stabilized clear polycarbonate diffuser.
• Silicone gasket.
• Die cast aluminium installation housing for surface mounting on wall.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-2766-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K


Product Benefits
• High visual comfort
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for walkway architecture.

Area of Application

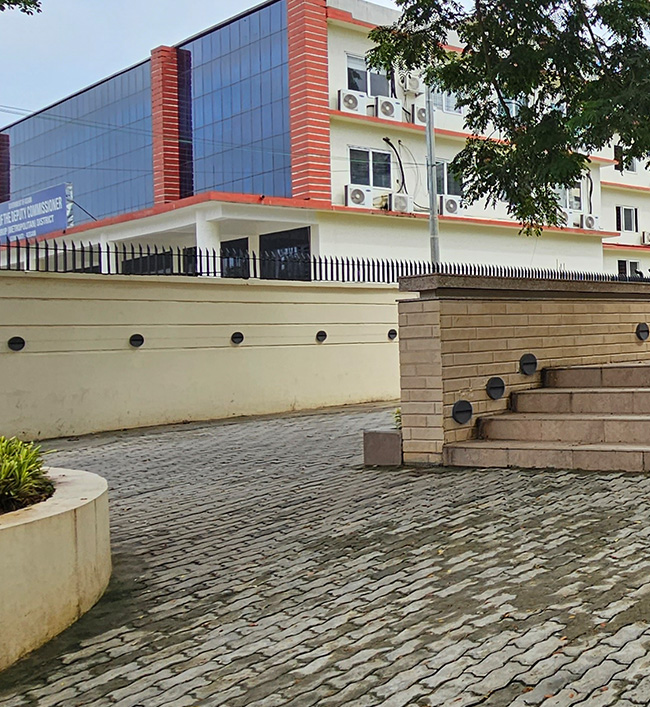

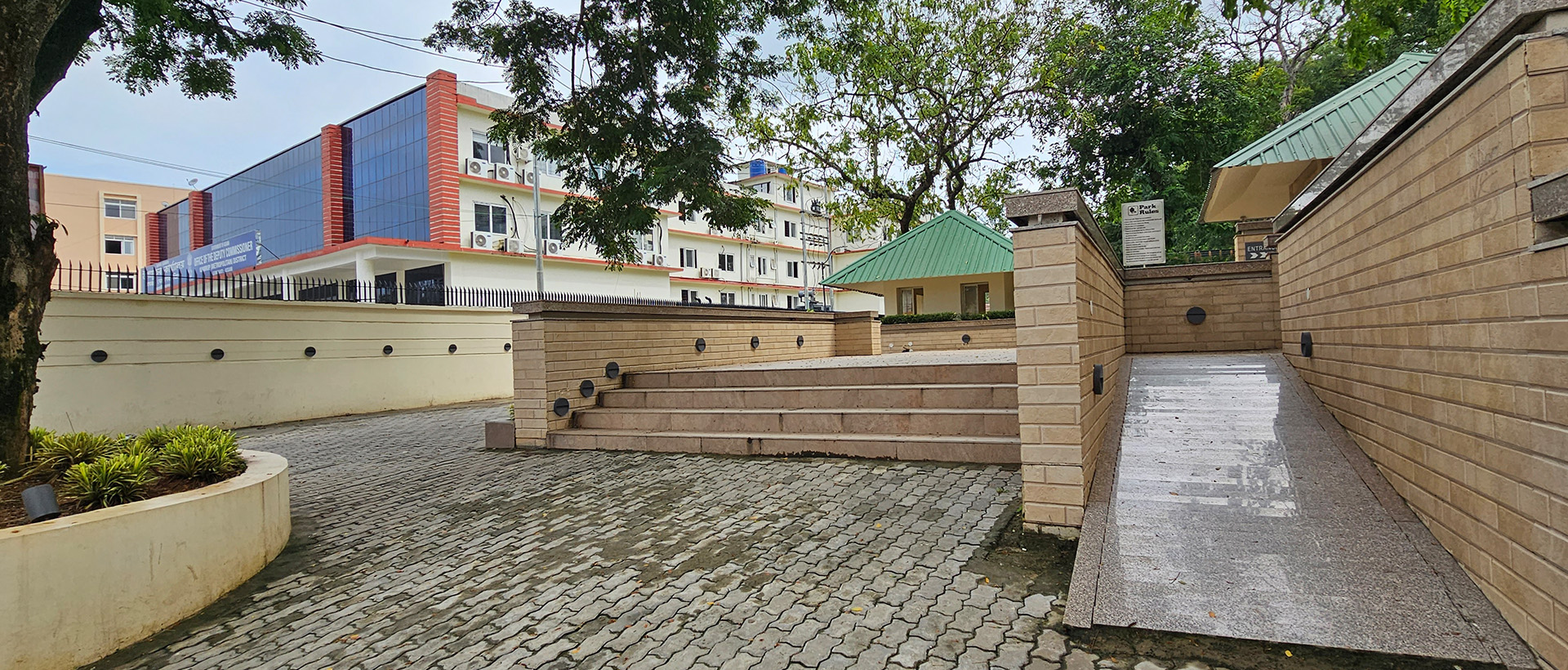

Staircase,Patios, Walkways, Passages, Porches, Entrance & Exits for both Interior & Exterior applications.

Available Finish
Pure polyester powder coat
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

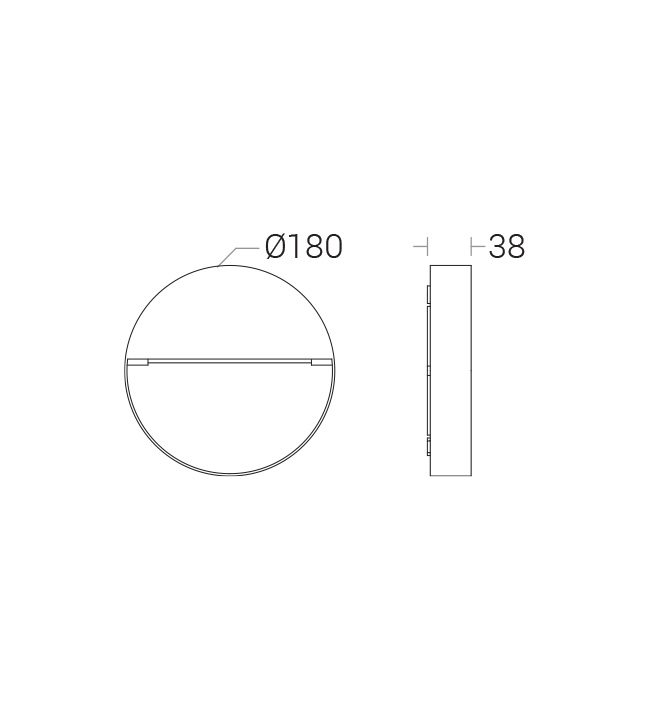

KL-276612W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateØ180 x 38mmKL-2766.IES
KL-2766.IES
KL-2766.IES
KL-2766-BA--4000K.IES
KL-2766.PDF
KL-2766.PDF
KL-2766.PDF
KL-2766-BA--4000K.PDF
2766.pdf
