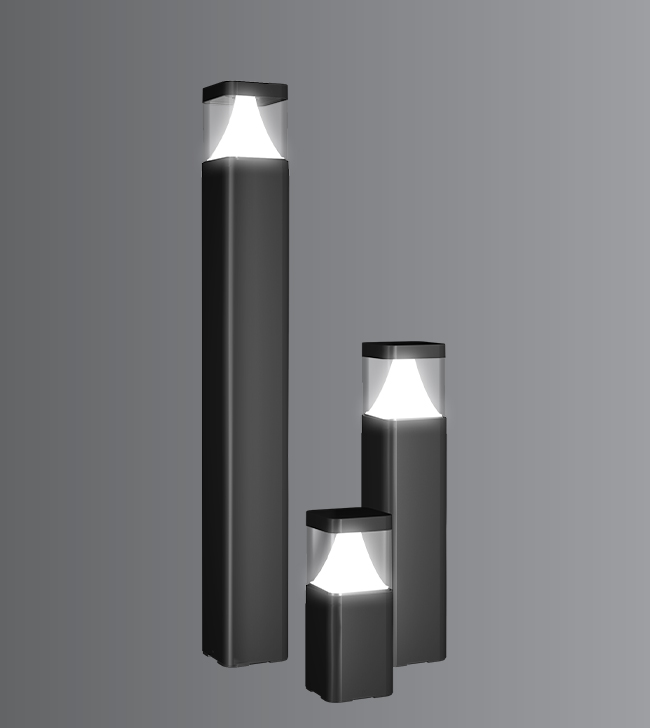

Nimbus Bollard

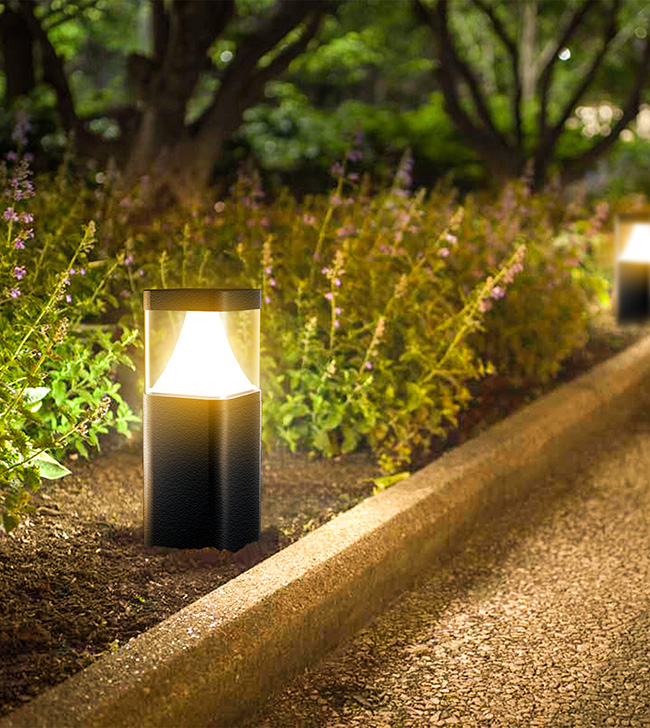

A decorative LED bollards designed for garden and pathway luminaires. These luminaries offer shielded glare free illumination of ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture. Bollard luminaires contribute to safety by illuminating pathways and other open spaces.

Product Description
•• Luminaire body made of square aluminium tube (grade 6063) with die cast aluminium components and SS fasteners.
• For optimum coordination with lighting situation,these luminaires can be supplied in three different mounting heights.
• Luminaire integrated with 16W LED.
• Silicone gasket
• UV stabilized clear Polycarbonate diffuser.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4726-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption

Area of Application
Suitable for low/medium public areas

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-472816W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateSq.121 x 300mmM7

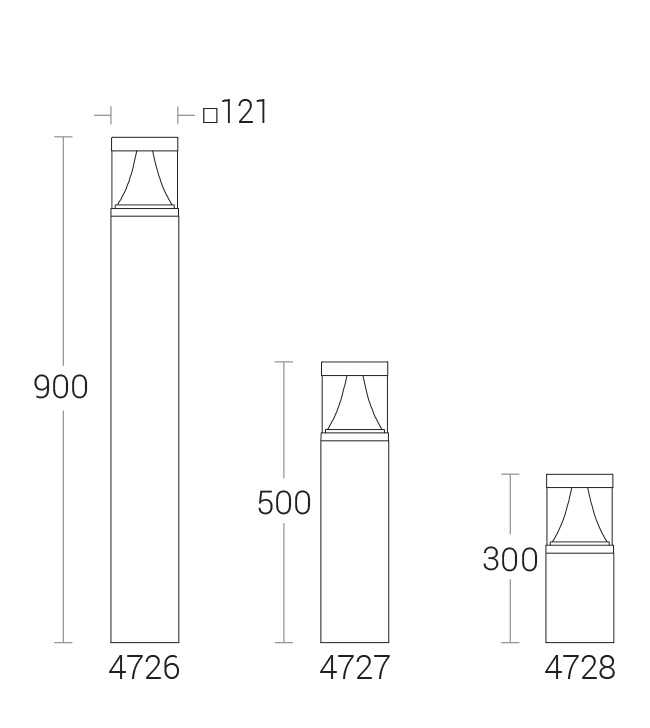

Detailed Foundation Drawing
KL-4728.IES
KL-4728.IES
KL-4728.PDF
KL-4728.PDF
4728.pdf
KL-472716W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateSq.121 x 500mmM7
Detailed Foundation Drawing
KL-4727.IES
KL-4727.IES
KL-4727.PDF
KL-4727.PDF
4727.pdf
KL-472616W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateSq.121 x 900mmM7
Detailed Foundation Drawing
KL-4726.IES
KL-4726.IES
KL-4726.PDF
KL-4726.PDF
4726.pdf
