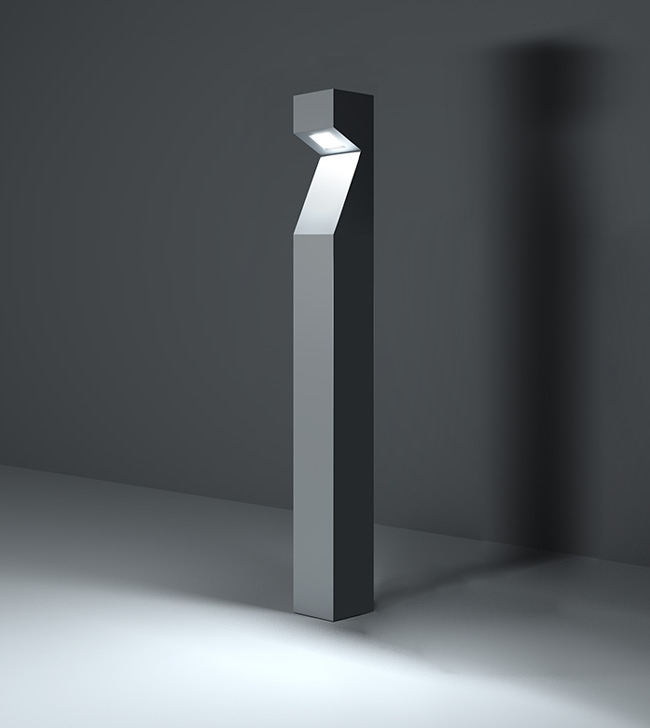

Polar Quad Asy Bollard
A decorative LED bollards designed with single side light output to provide soft, flat beam light distribution. A sleek minimalist shape provides distinctive lighting effects by night and decorative urban effect during the day. Bollard luminaires contribute to safety by illuminating pathways and other open spaces.

Product Description
• Luminaire body made of square aluminium tube (grade 6063) with aluminium components and SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 12W LED.
• Silicone gasket.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24729-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Corrosion resistant and Maintenance free.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for low / medium traffic areas.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

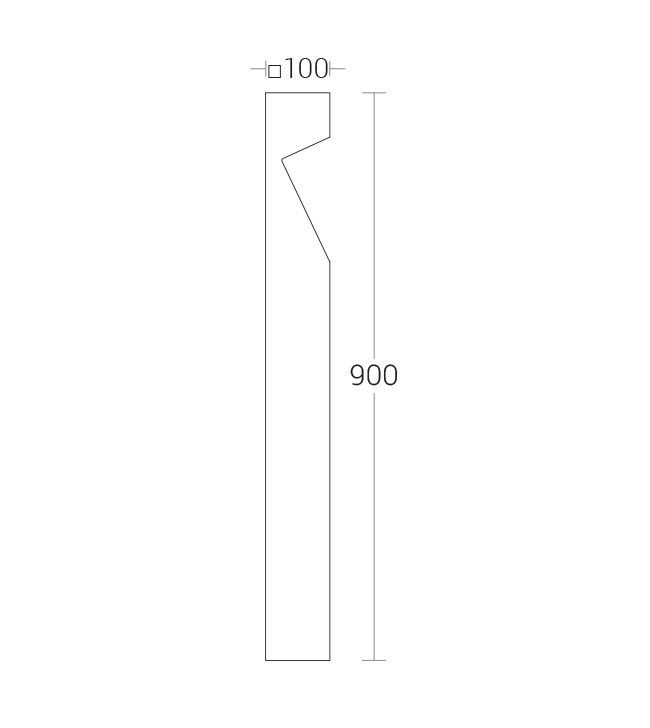

2472912W LED 2700K,3000K,4000K,5700K BA:Asymmetrical, Polycarbonate Optical LensSq.100 x 900mmM37
Detailed Foundation Drawing
24729-BA--WW.IES
24729-BA--WW.PDF
24729.pdf
24729.txt
