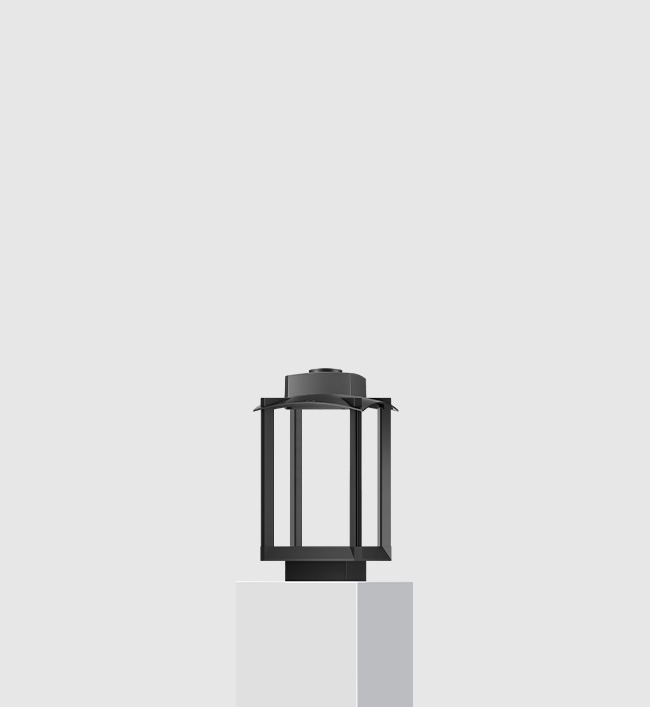

Cyrilla Pillar
The design ensures that the light is soft yet effective, creating a pleasant ambiance while minimizing harshness or distraction. Crafted with a robust, aesthetically appealing construction, the cyrilla pillar is built to withstand all weather conditions, providing reliable performance over time. Its durable materials and design ensure that it maintains its initial lighting quality throughout the lifetime of the installation, making it a smart and long-lasting lighting solution for outdoor spaces.

Product Description
• Luminaire top cover & bottom frame made of die-cast aluminium (grade ADC12) with extruded aluminium supporting arm.
• Clear toughened glass.
• Luminaire integrated with 12W LED.
• Aluminium base for easy installation on the pillar.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4626-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

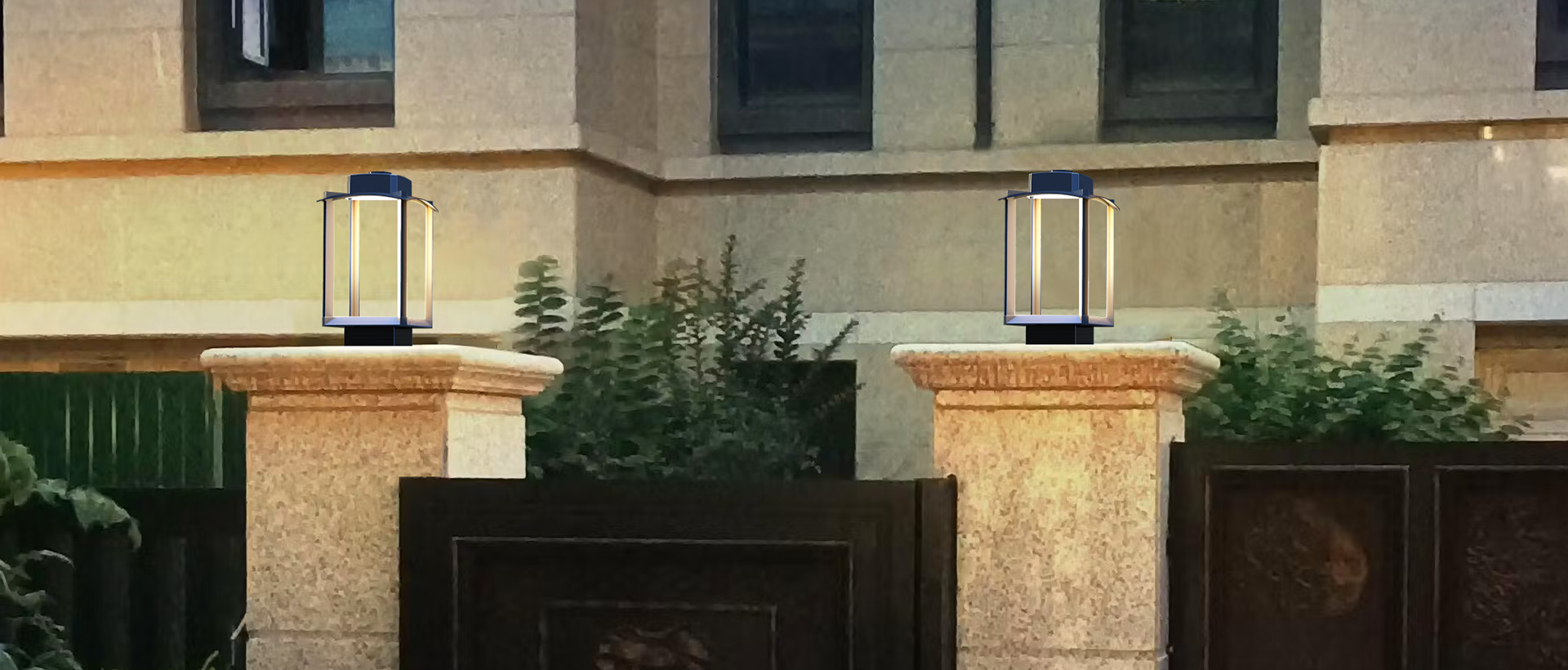

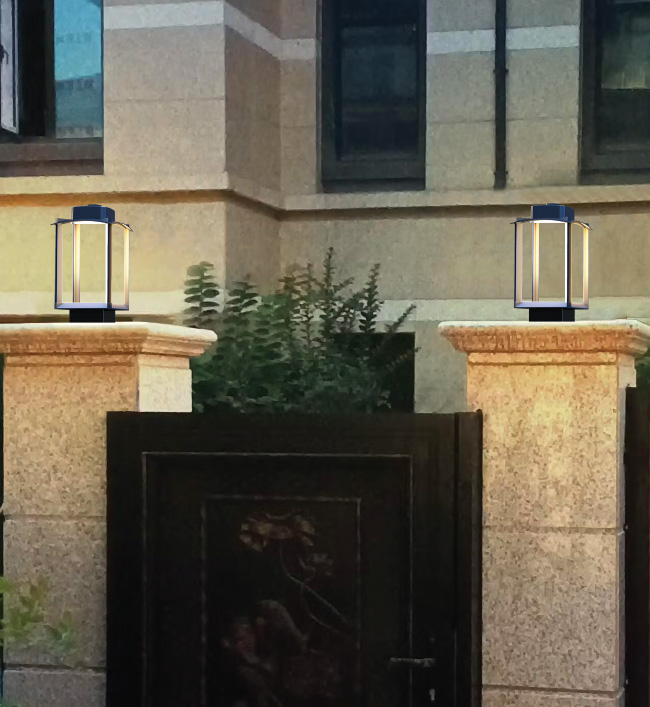

Courtyard gates, Lawn pillars, Building entrance, Terrace walls, Gardens, Park entrances, Boundary walls.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

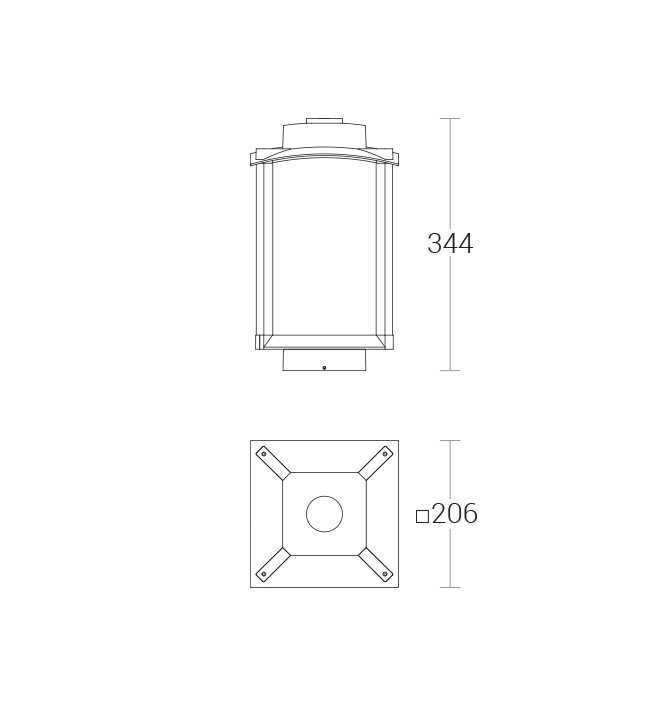

KL-462612W LED 2700K,3000K,4000K,6500K, Translucent AcrylicSq.206 x 344mmW28
Detailed Foundation Drawing
4626.pdf
KL-4626.txt
