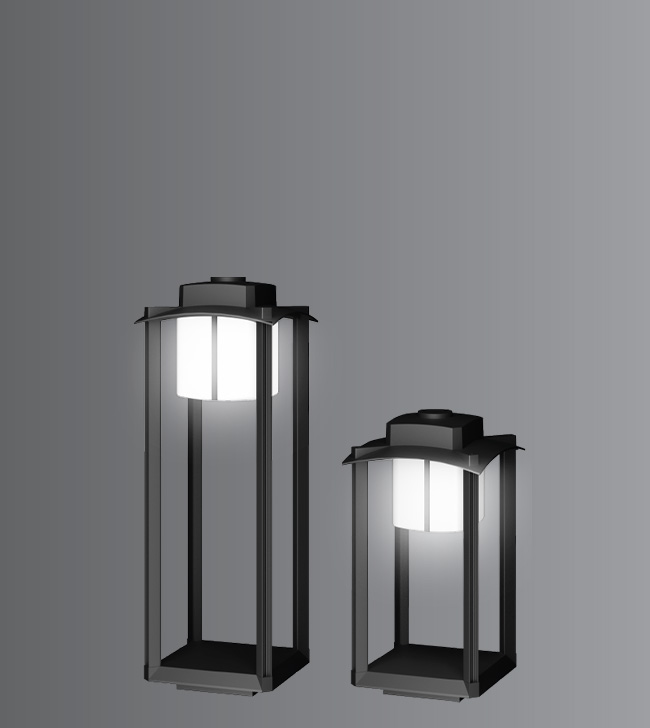

Cyrilla Bollard
Decorative bollard suitable for classical architecture, create a pleasant light distribution with a high degree of visual comfort. These luminaries offer shielded glare free illumination of ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture

Product Description
• Luminaire body made of pressure die-cast aluminium with extruded aluminium supporting arm and SS fasteners.
• Translucent polycarbonate diffuser.
• For optimum coordination with lighting situation, these luminaries can be supplied in two different mounting heights.
• Luminaire integrated with 12W LED.
• Die-cast aluminium mounting plate for bolting onto a foundation.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• CRI ( Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4737-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

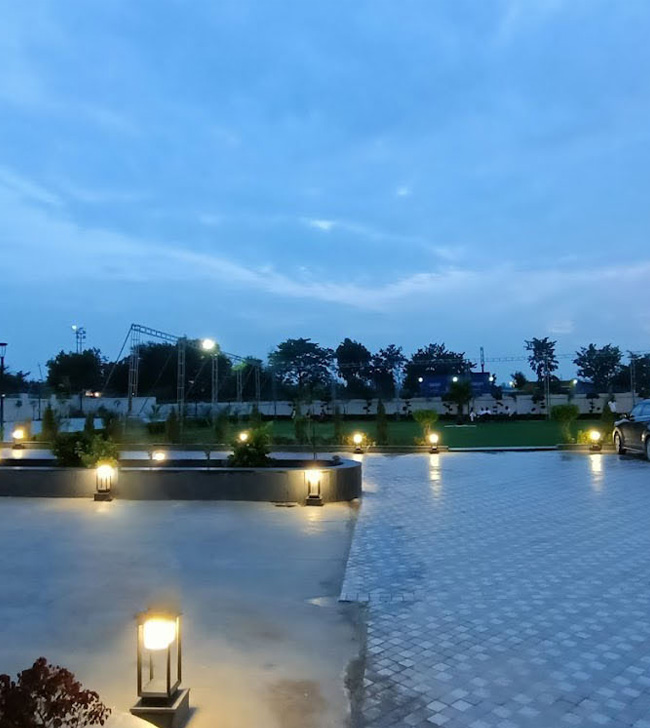

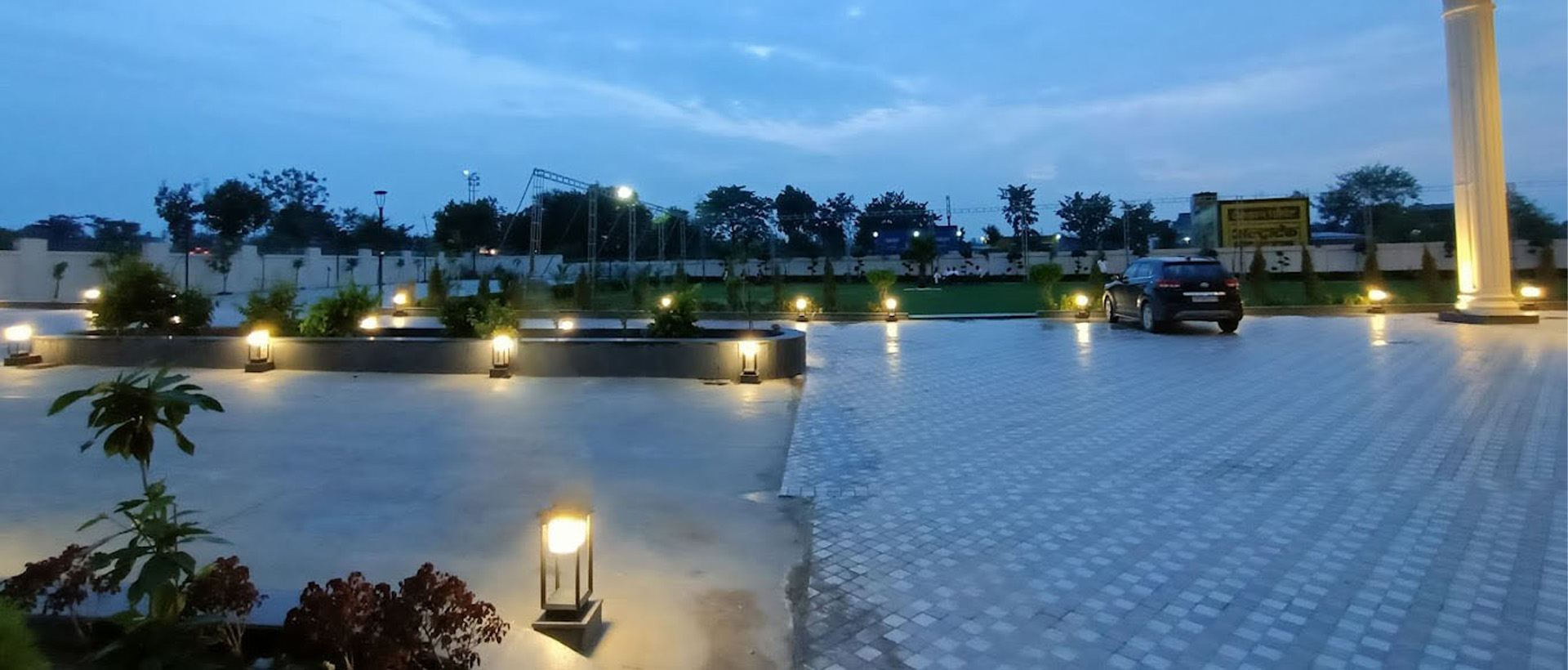

Area of Application
Suitable for gated community and non-public / low density public areas

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page

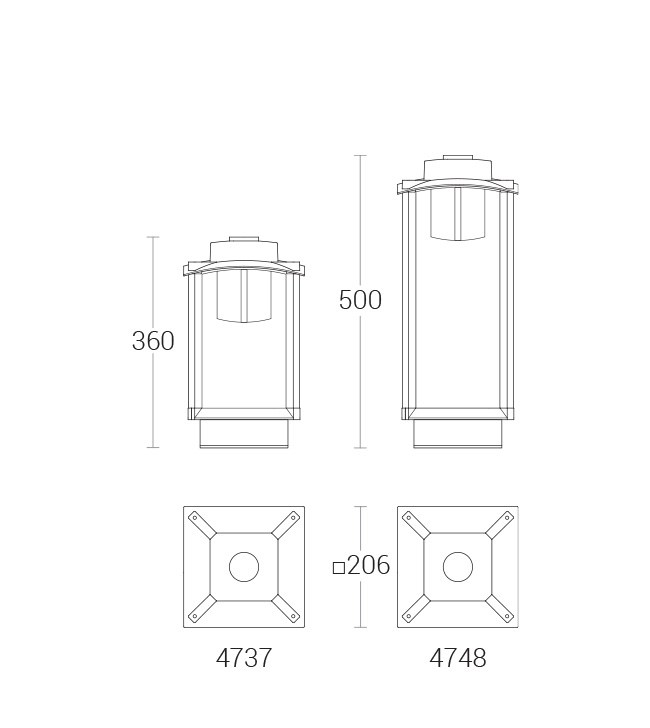

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-473712W LED 2700K,3000K,4000K,6500K, Translucent PolycarbonateSq.206 x 335mmM36
Detailed Foundation Drawing
4737.pdf
KL-474812W LED 2700K,3000K,4000K,6500K, Translucent PolycarbonateSq.206 x 500mmM36
Detailed Foundation Drawing
4748.pdf
