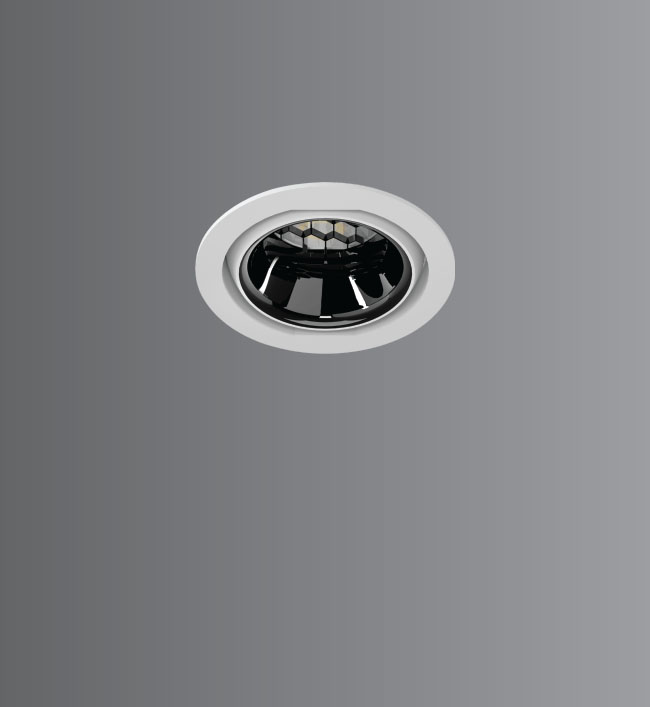

Sleek Platina Series
LED recessed ceiling luminaire with adjustable light distribution. High lumen output, different wattage & CCT options makes platina series a versatile range of superior glare free indoor lighting solutions. Modular design for various applications. Easy installation & maintenance.

Product Description
• Luminaire made of die-cast aluminium body and heat sink for better thermal management.
• Dark light technology UGR <16
• Precision engineered high quality optics & electro plated reflector.
• Metallized thermoplastic reflector with anti-scratch protection treatment with high luminous efficiency and visual comfort.
• Powered by CREE, CRI >80 (90 On Request)

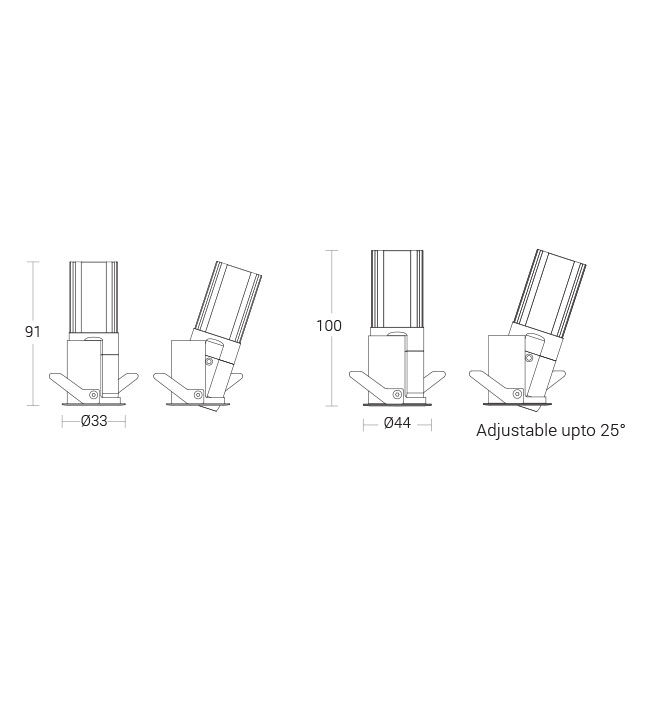

• Adjustable upto 25°
• Beam Angle : 15° / 24° / 36° with diffuser options
• Tunable whites available on request
• CCT : 3000K / 4000K / 5700K
• High PF constant current LED driver with surge and thermal protection.
• Available with standard and dimmable control gear.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.

Product Benefits
• Easy maintenance without removing the frame from false ceiling
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

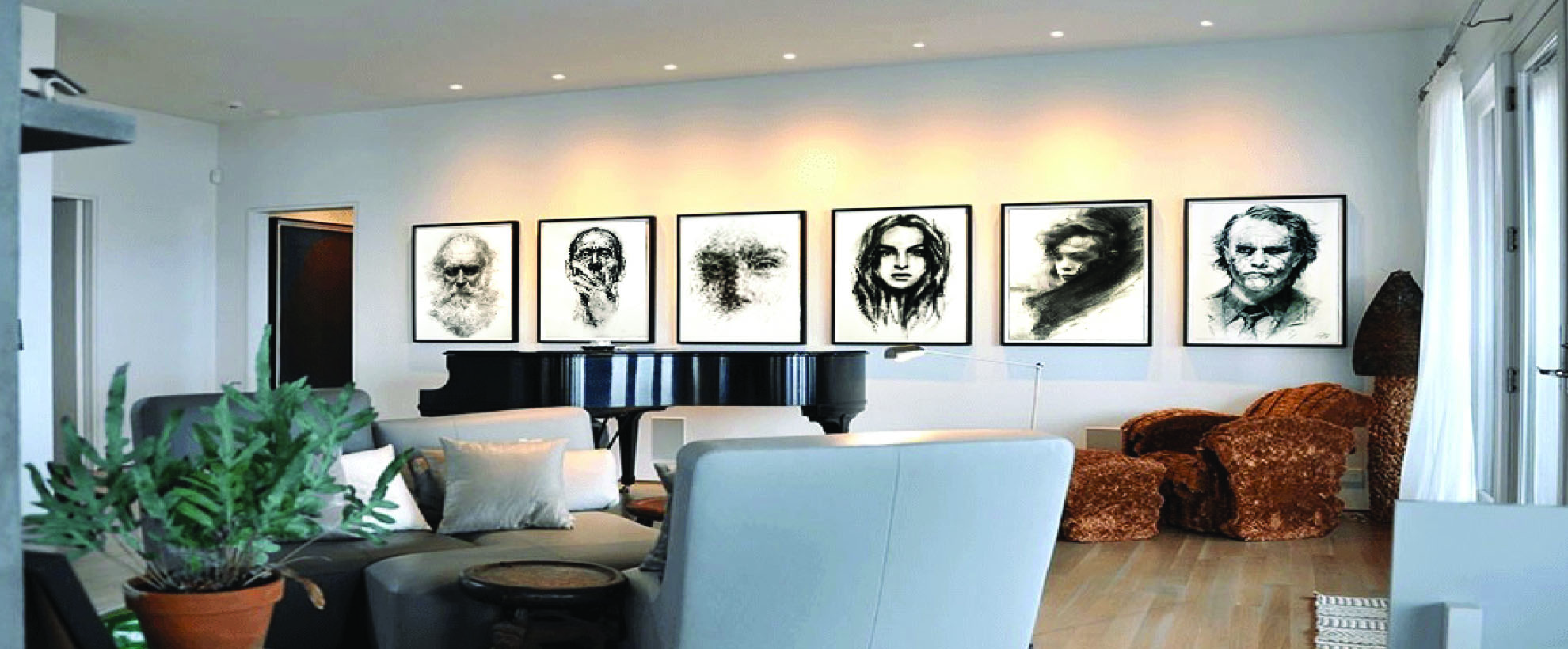

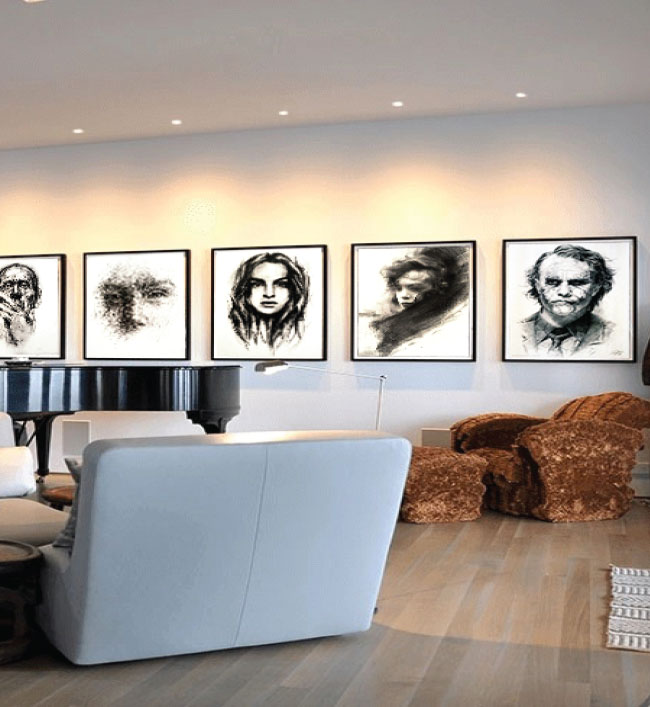

Area of Application
Highend Residential, Hotel, Villas, Clubs, Lobbies & Foyers, Retail Sector, Corporate Office, Hospitality Industry, Commercial & Business Centers etc.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-33386W LED 3000K BA:15°,24°,36°, PolycarbonateC.O.D : Ø30mmKL-3338.IES
KL-3338.IES
KL-3338.PDF
KL-3338.PDF
3338.pdf
