Navi Spot

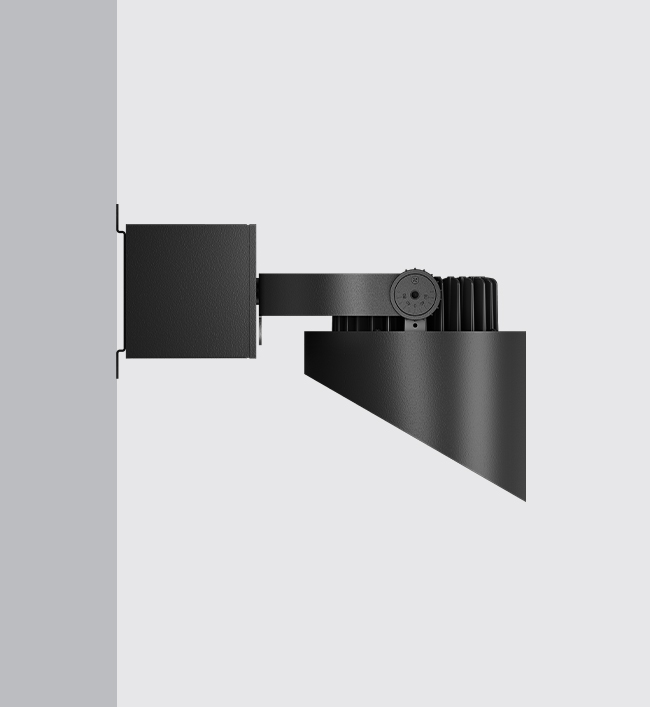

Surface mounted range of LED wall lights are a perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.
Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered in symmetrical light distribution.

Product Description
• Extruded aluminium hood cover integrated with die-cast module and extruded aluminium alloy (grade 6063) tube.
• Heat resistant polycarbonate optical lens.
• Stainless steel mounting clamp for easy installation onto the wall.
• Bracket to facilitate proper aiming of the luminaire at desired angle.
• Available in 6° beam angle.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4335-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K (RGBW On Request).

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

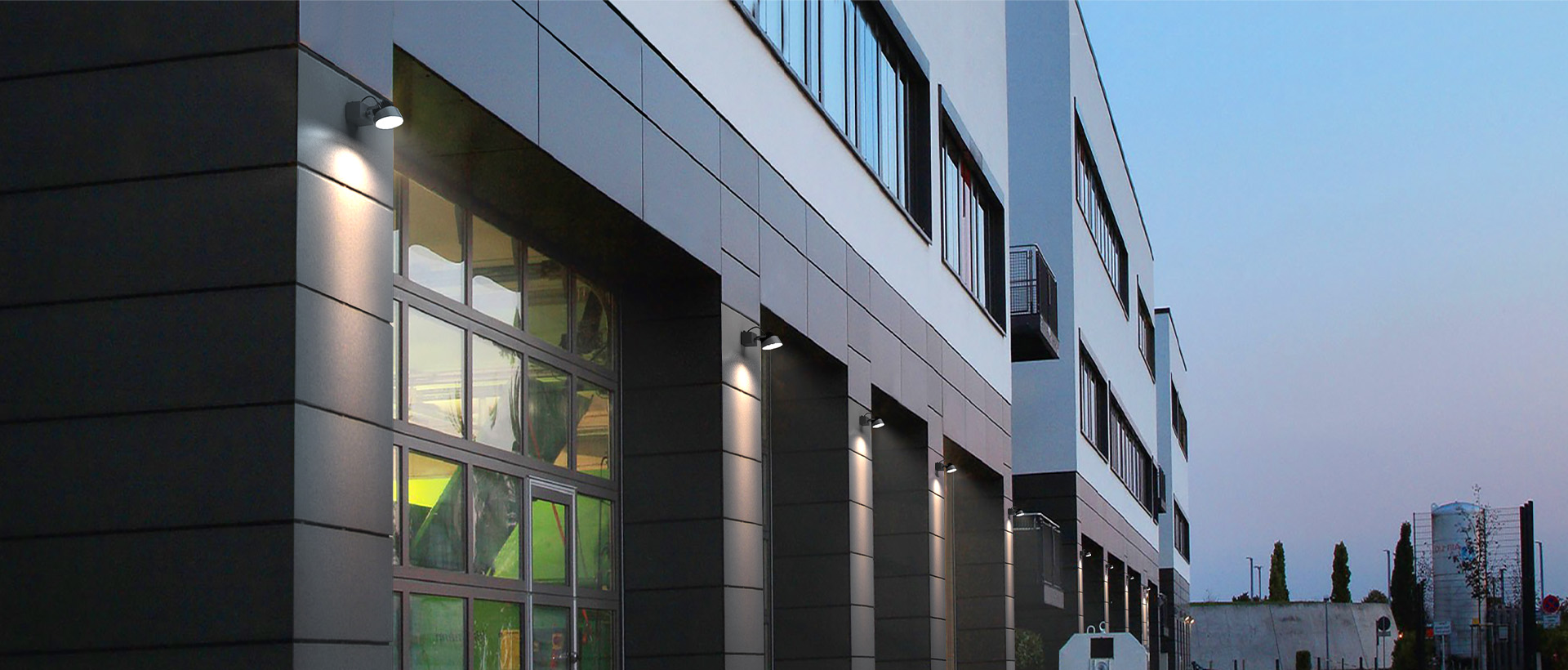

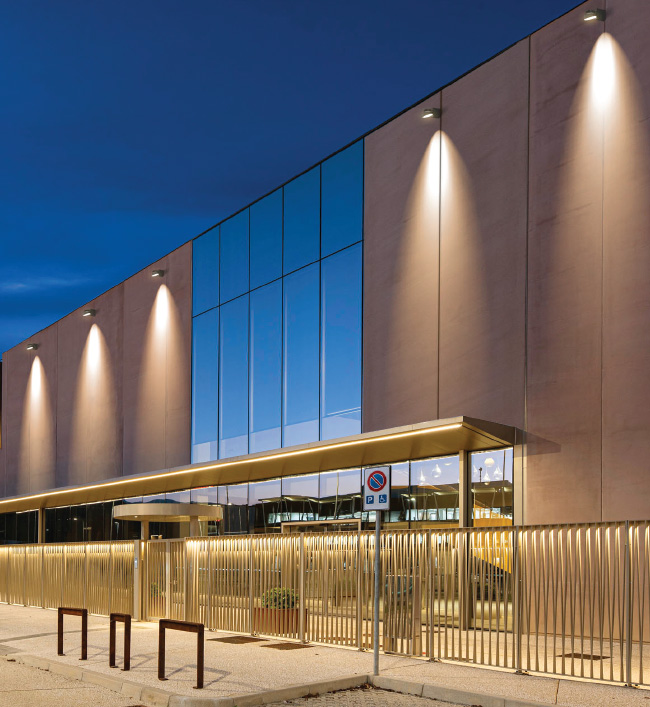

Pathways in residential buildings & office complex,Sculptures,Passages,Structures and Security lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

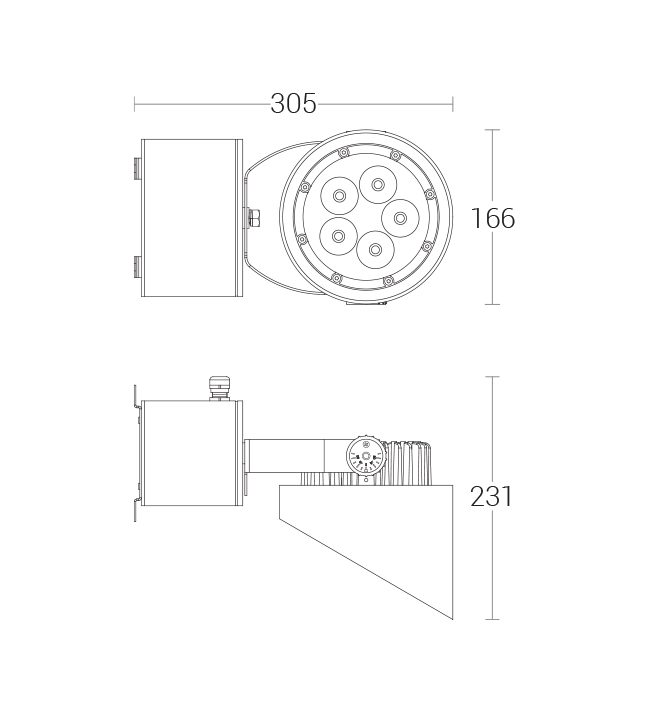

KL-433430W LED 2700K,3000K,4000K,5700K BA:6°, Polycarbonate Optical Lens329 x Ø166 x 160mmW39
Detailed Foundation Drawing
4334.pdf
KL-433550W LED 2700K,3000K,4000K,5700K BA:6°, Polycarbonate Optical Lens329 x Ø166 x 160mmW39
Detailed Foundation Drawing
KL-4335.IES
KL-4335.IES
KL-4335.IES
KL-4335.PDF
KL-4335.PDF
KL-4335.PDF
4335.pdf
