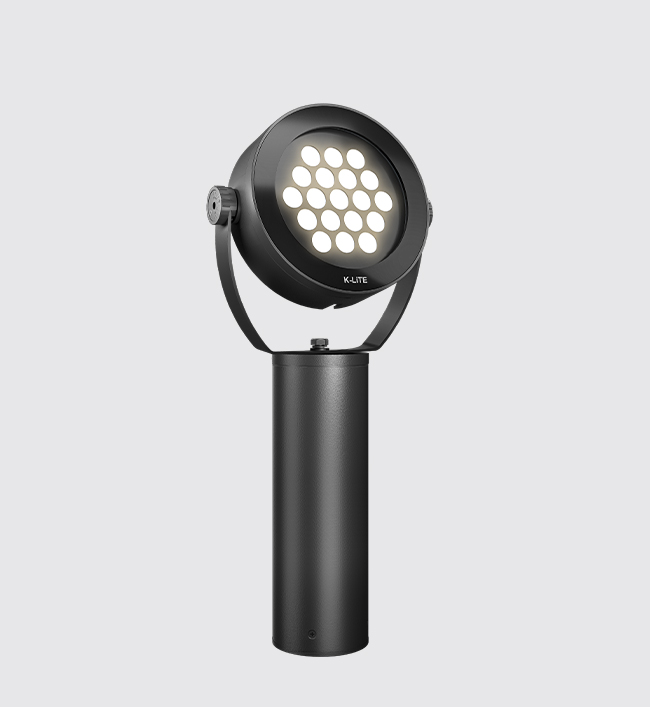

Navi Midi
The Navi Midi - Flood Light is a powerful and efficient lighting fixture designed for a wide range of applications. It delivers a bright, focused light suitable for outdoor and large-area illumination. It provides robust protection against dust and water, ensuring reliable performance in various weather conditions. The Navi Midi - Flood Light is built to withstand mechanical impacts, enhancing its durability and longevity, making it versatile for use in parking lots, building facades, sports fields, and other expansive outdoor spaces. Its high efficiency and robust construction make it a dependable choice for demanding lighting needs.

Material
Body : Pressure Die-Cast Aluminium
Bracket : Stainless Steel
Impact Protection : IK07
Ingress Protection : IP65
Diffuser : Toughened glass
Mounting : Surface

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product Configurations
Wattage : 70W
Beam Angle : 8° / 12° / 24° / 40° / 60 ° / 40°x11°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application
Architectural and building facade lighting, Pathways, Parks, Sculptures, Structures and Security lighting.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

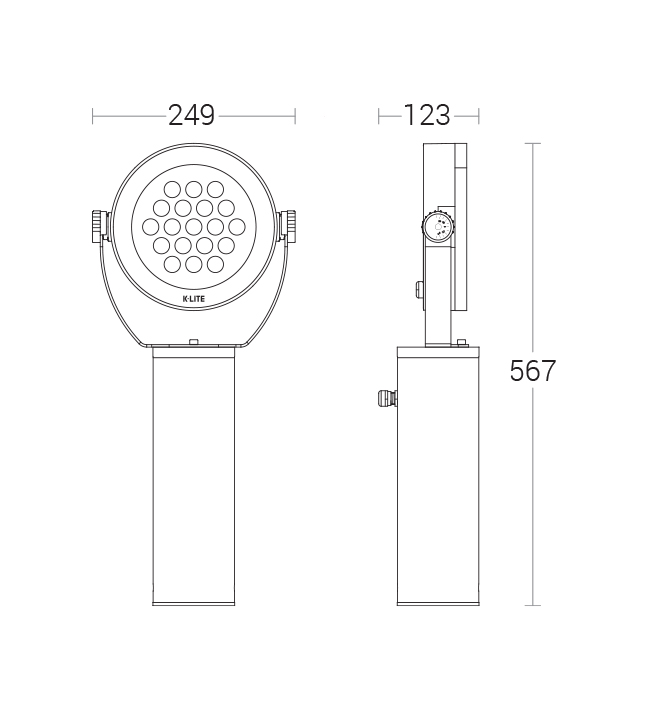

KL-446870W LED 2700K,3000K,4000K,5700K BA:8°,12°,24°,40°,60°,40°x11°, Toughened Glass249 x 97 x 250mmKL-4468.IES
KL-4468.IES
KL-4468.IES
KL-4468.PDF
KL-4468.PDF
KL-4468.PDF
4468.pdf
