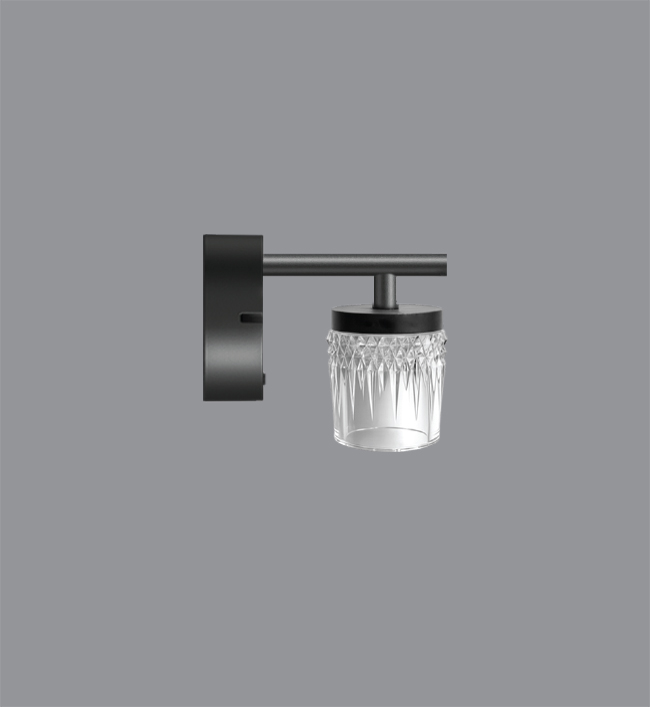

Wall Elina

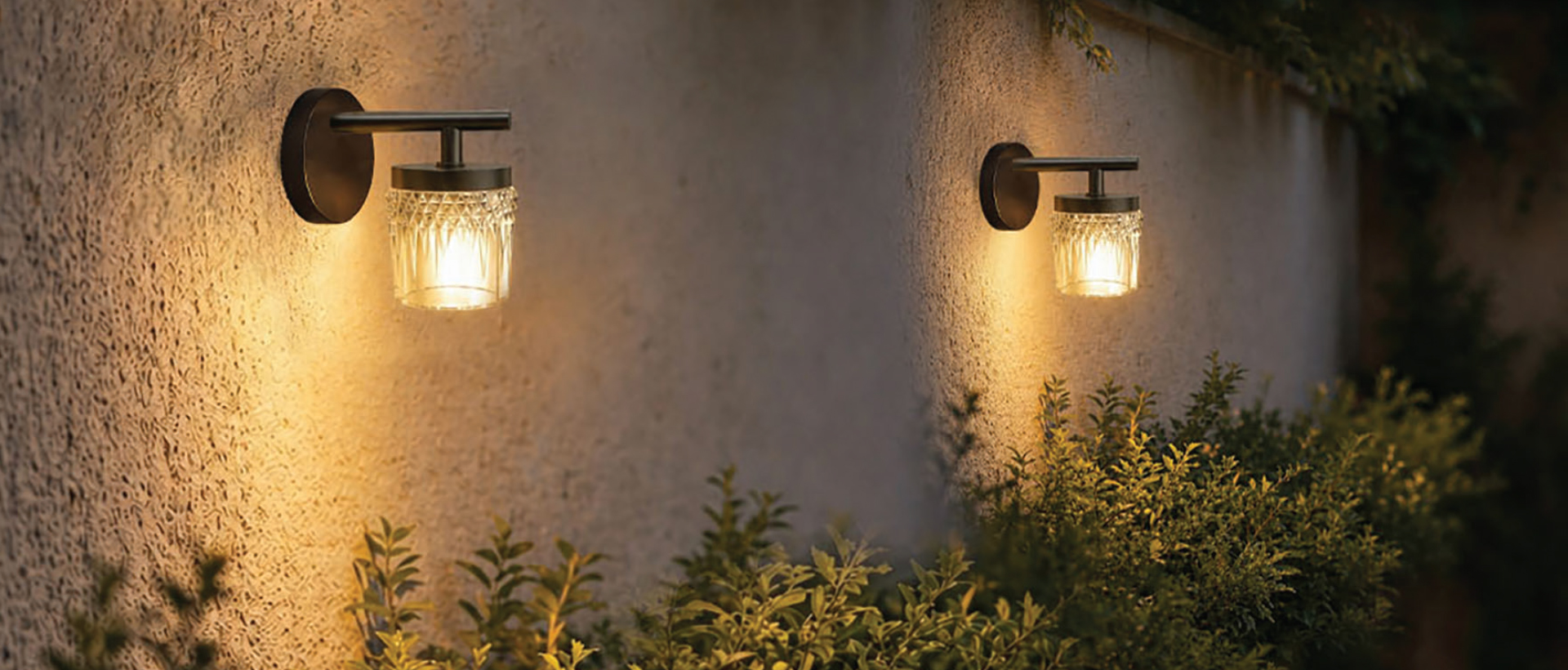

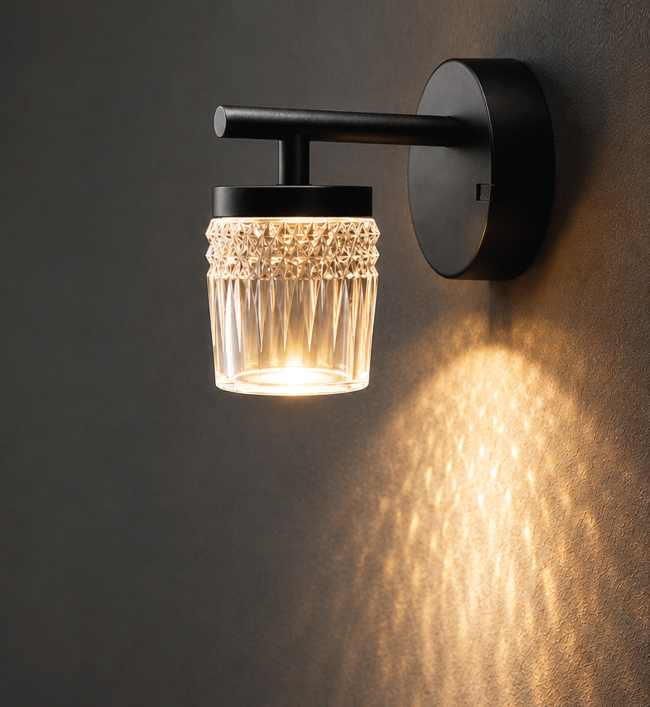

Our surface-mounted range of wall lights is an ideal solution for a wide range of outdoor lighting applications. Designed to effectively illuminate the area in front of the luminaire, they also create attractive light accents on vertical surfaces. Built with durable construction, these luminaires provide long-lasting protection against the ingress of dust, moisture, and insects, ensuring reliable performance in outdoor environments.

Material
Body : Extruded aluminium tube (grade 6063)
Diffuser : PMMA
Ingress Protection : IP65
Mounting : Pressure die cast aluminium wall mounting base

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz

Product Configurations
Wattage : 6W LED
Optical Beam Angle : 120°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area Of Application
Residential, Building facade, Commercial centres, Passages, Pathways.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

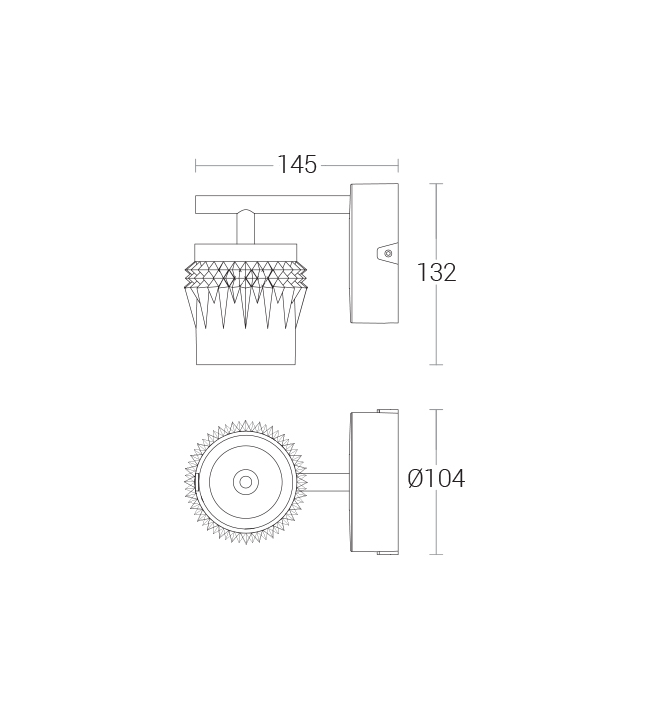

225706W LED 2700K,3000K,4000K,5700K, Crystal145 x Ø104 x 132mmW41
Detailed Foundation Drawing
22570.pdf
22570.txt
