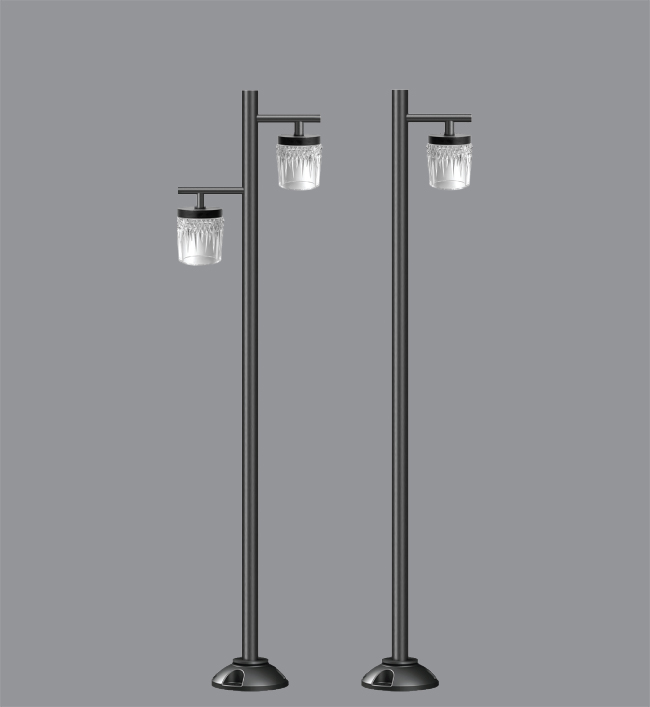

Elina
An eco-friendly LED garden and pathway luminaire designed for sustainability and superior visual comfort. With smooth light distribution and glare control, it creates a pleasant and safe lighting environment for outdoor pathways and landscaped areas.

Material
Body : Extruded aluminium tube (grade 6063)
Diffuser : PMMA
Ingress Protection : IP65
Mounting : Pressure die cast aluminium mounting base

Electrical
Driver : Constant Voltage
Power Supply : Non-Integral
Operating Voltage : 24Vdc

Product Configurations
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 120°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area Of Application
Suitable for low traffic areas

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

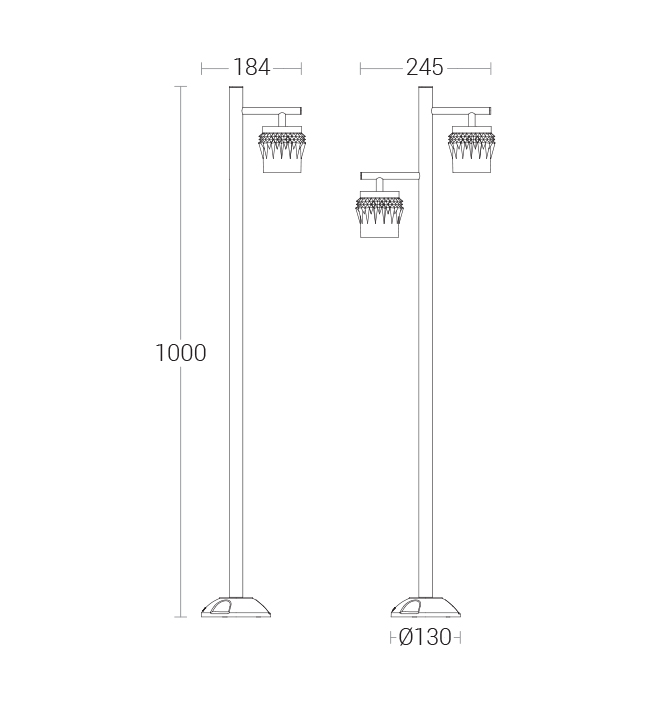

225691x6W / 2x6W 2700K,3000K,4000K,5700K BA:120°, PMMA184 x Ø130 x 1000 / 245 x Ø130 x 1000mmM57
Detailed Foundation Drawing
22569.pdf
22569.txt
