Pelican Fort Mini
Pelican Fort Mini pathway luminaires is a special purpose outdoor luminaire,integral model,totally weather proof aesthetically contoured.Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment with top opening facility for maintenance.

Product Description

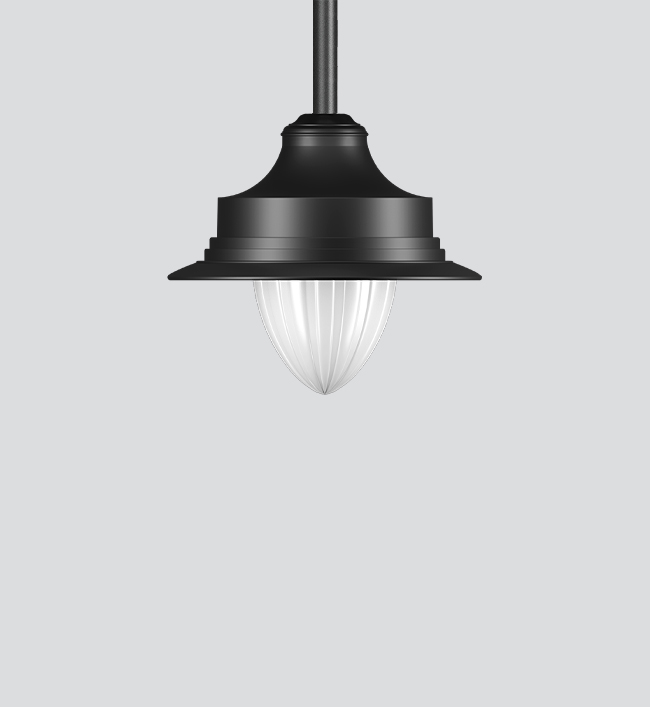

• Luminaire comprises of specially contoured spun aluminium body featuring high strength and anti corrosion.
• Non yellowing, UV stabilised, translucent V acrylic / translucent convex acrylic diffuser.
• EPDM gasket.
• Luminaire integrated with 30W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4980-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

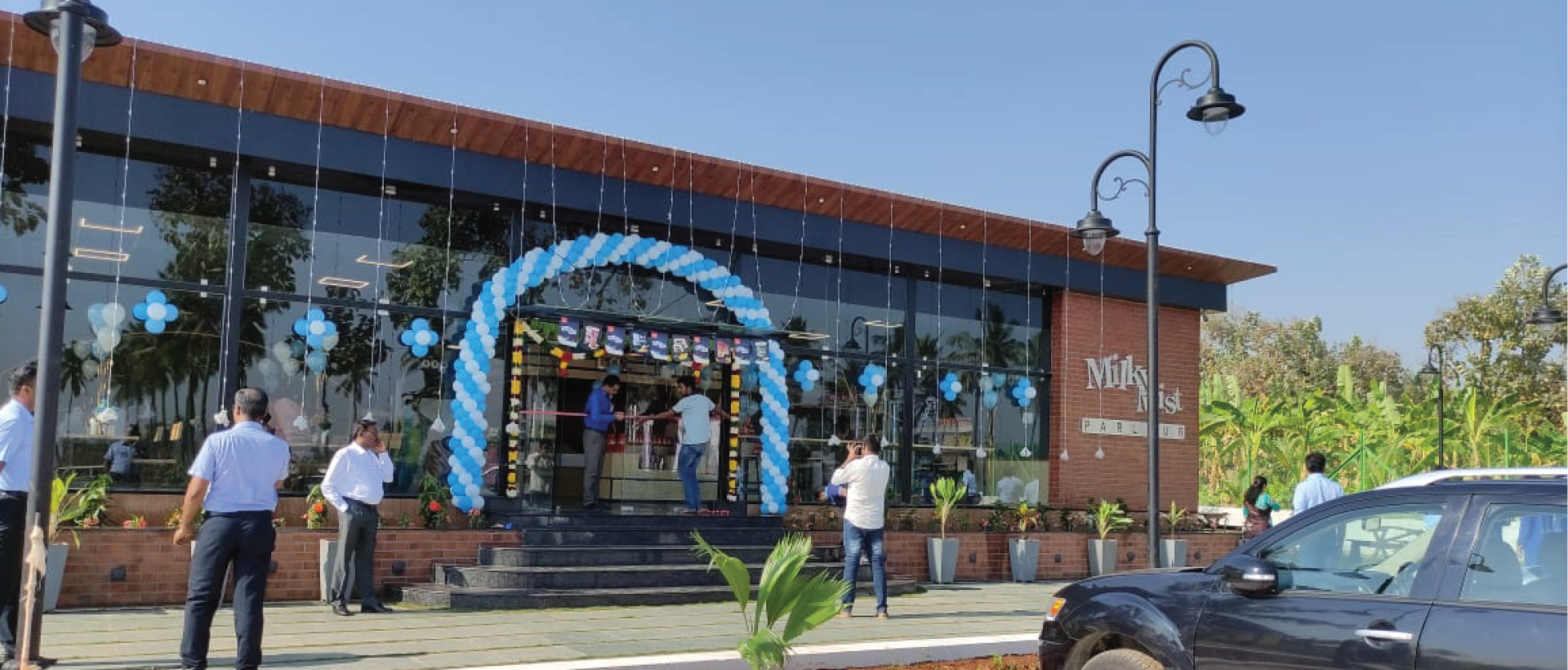

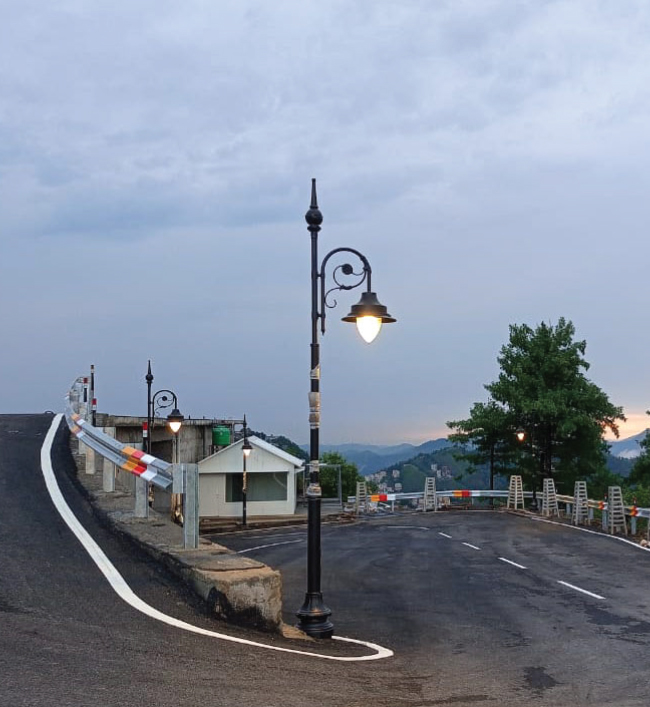

Gardens,Smaller Roadways,Private driveways,Residential Area Lighting,Courtyards,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

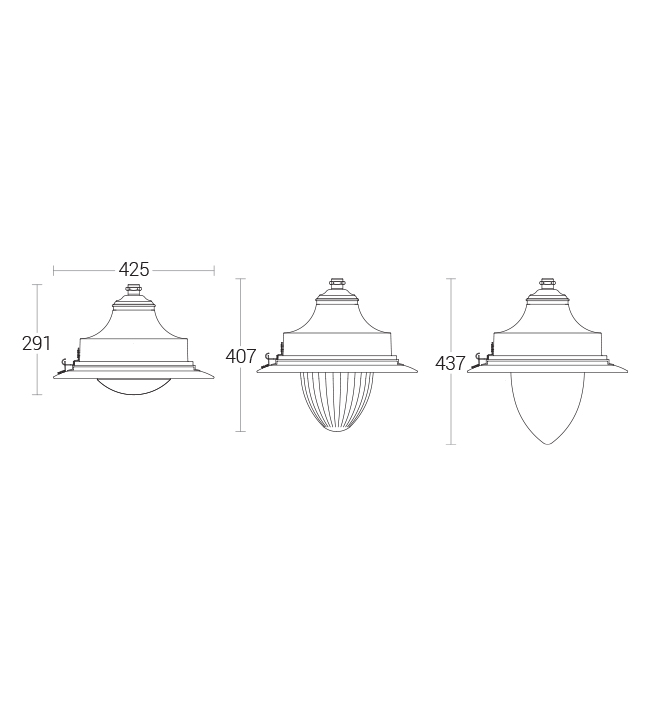

KL-4899E27 Holder, A8 - Translucent Acrylic, A9 - Clear Acrylic, A12 - Clear PolycarbonateA8 / A9 : Ø425 x 407, A12 : Ø425 x 437mmD4
4899.pdf
KL-498030W LED 2700K,3000K,4000K,5700K, A8 - Translucent Acrylic, A10 - Translucent AcrylicA8 : Ø425 x 407, A10 : Ø425 x 290mmD4
KL-4980.IESKL-4980.PDF4980.pdf
KL-489750W LED 3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø425 x 407, A12 : Ø425 x 437mmD4
KL-4897.IES
KL-4897.IES
KL-4897.PDF
KL-4897.PDF
4897.pdf
KL-4897.txt
KL-518830W LED 3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic / A12 - Clear PolycarbonateA9 : Ø425 x 407, A12 : Ø425 x 437mmD4
KL-5188.IES
KL-5188.IES
KL-5188.PDF
KL-5188.PDF
5188.pdf
KL-5188.txt
