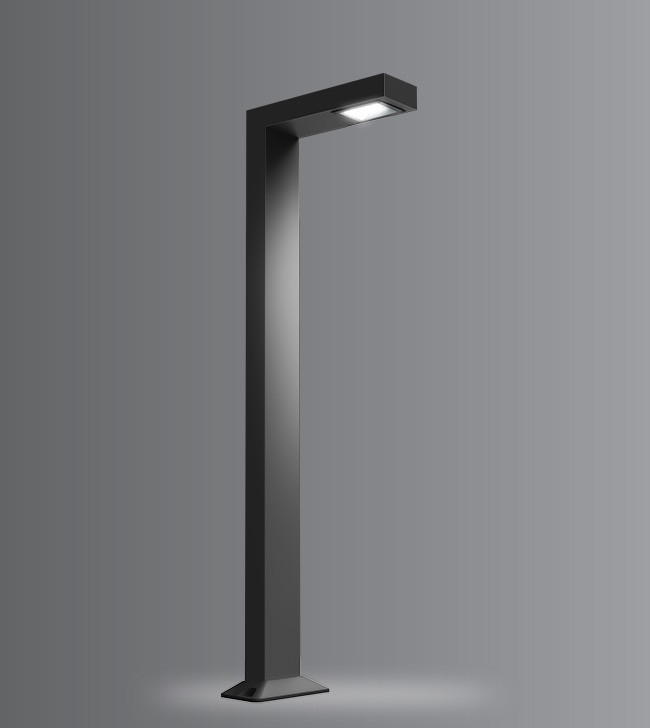

Polar Bollard
A minimalist decorative LED bollards designed to provide soft, uniform light. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture. Clean Lines and pure form are the underlying elements in this series of LED bollards.

Product Description
• Luminaire body made of rectangular extruded aluminium tube with aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Silicone gasket.
• Mounting base die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7069-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for gated community and non-public / low density public areas.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

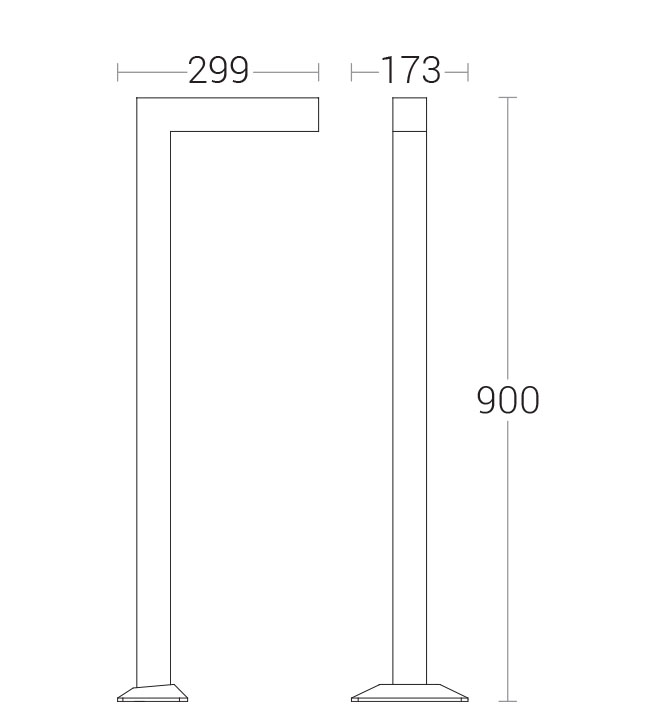

KL-706912W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens299 x 173 x 900mmM55
Detailed Foundation Drawing
7069.pdf
KL-7069.txt
