Wall Cylin Mini

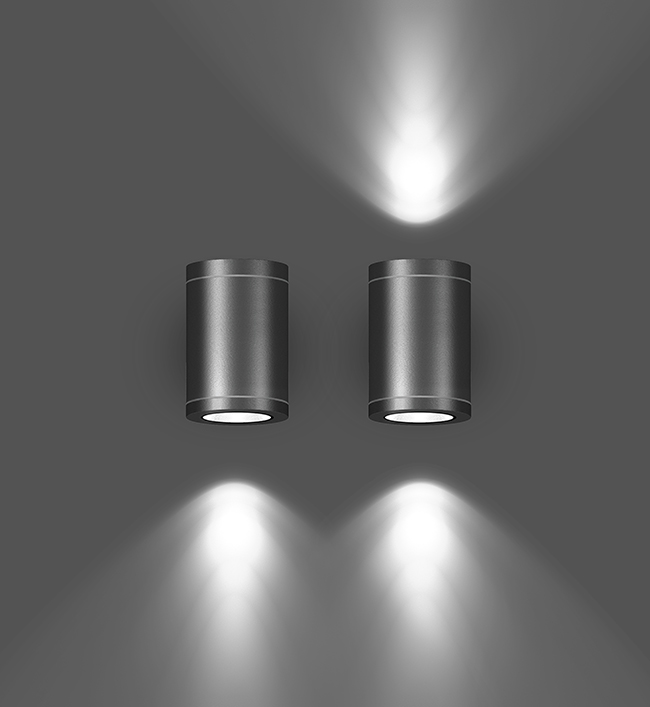

Wall mounted UP / DOWN wall luminaires for accent and ambient lighting. Aesthetically pleasing and precise light where it is required. Sophisticated form to suit all types of applications with fully shielded light source for up / down light effects.

Product Description
• Luminaire made of pressure die cast aluminium, extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Die Cast aluminium base for easy installation onto the wall / column.
• Cable entries for through-wiring of mains supply cable.
• Prewired with GU10 holder and suitable for operation on 240V, 50Hz single phase ac supply.

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation with low maintenance.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.

Area of Application

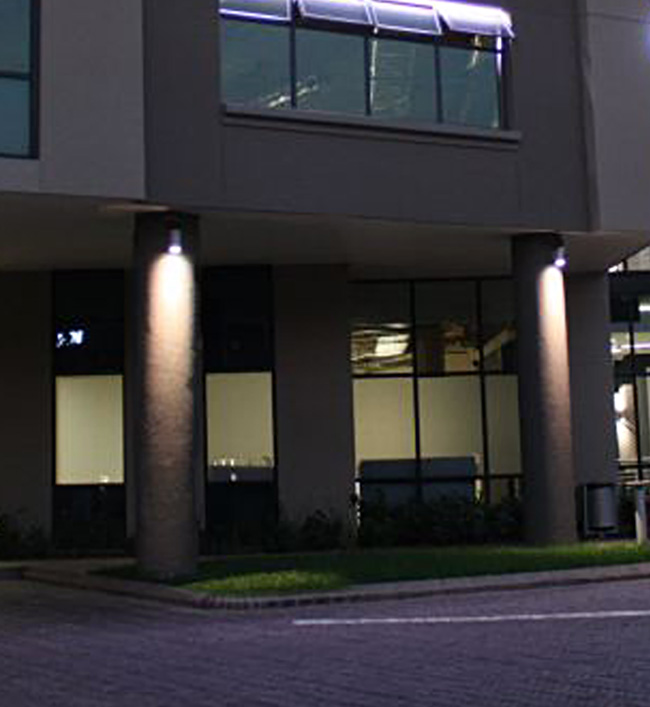

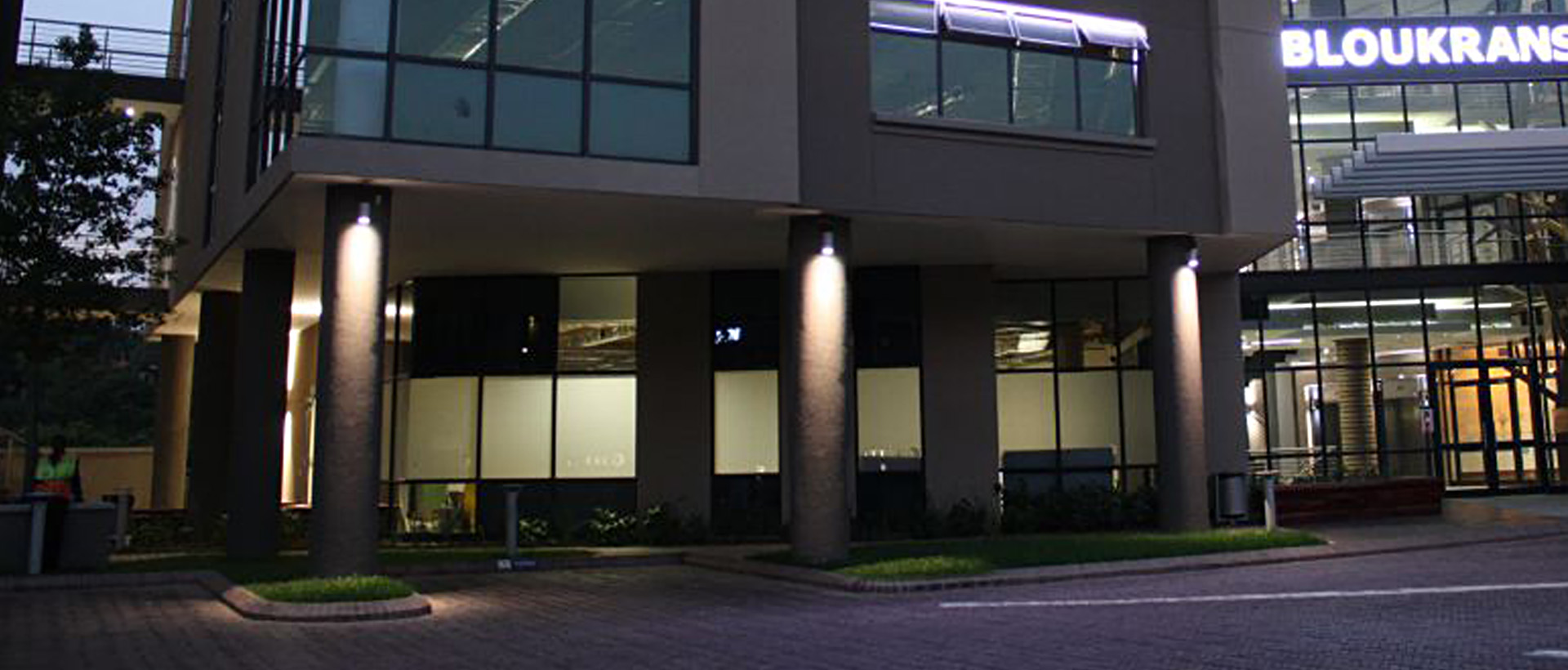

Residential, Building facade, commercial centres, Passages, Walkways, Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

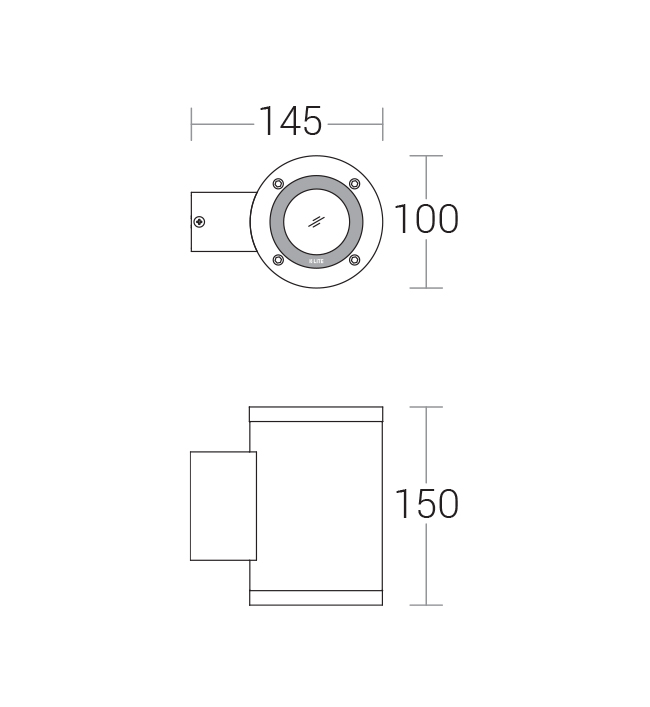

KL-3666GU10 Holder, Clear Toughened Glass145 x 100 x 150mmW32
Detailed Foundation Drawing
3666.pdf
KL-36672 x GU10 Holder, Clear Toughened Glass145 x 100 x 150mmW32
Detailed Foundation Drawing
3667.pdf
