In-Ground Luminaires
MICROLED are compact IP67 LED fittings suitable for down light, Wall recessed and walkover for both indoor & outdoor applications. Small dimension with flush mounting installation. It is equipped with a screwless round front ring in STAINLESS STEEL with Symmetrical. These fixtures are perfect for creating very defined effects of accent light. On request, these luminaires are also available in Red, Green, Blue and Amber.

Product Description
• Luminaire body and screwless front ring made from solid billet of 316 grade stainless steel.
• Silicone seal gasket ensures IP67 rating.
• Toughened glass of 4mm thickness.
• Polycarbonate optical lens.
• Luminaire hard wired with 2 x 0.5mm2 cable of 0.5 metre length.
• Supplied with mounting sleeve for preparing recessed opening in ground or wall.
• Constant voltage non integral power supply
• Low Voltage at 24Vdc assures safety.
• Ordering guide : KL-4085-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K.
• Options : Red / Green / Blue / Amber ( On Request ).

Product Benefits
• High luminous efficiency at reduced wattage.
• Compact luminaire provides distinctive lighting effects for wall architecture & accent lighting.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

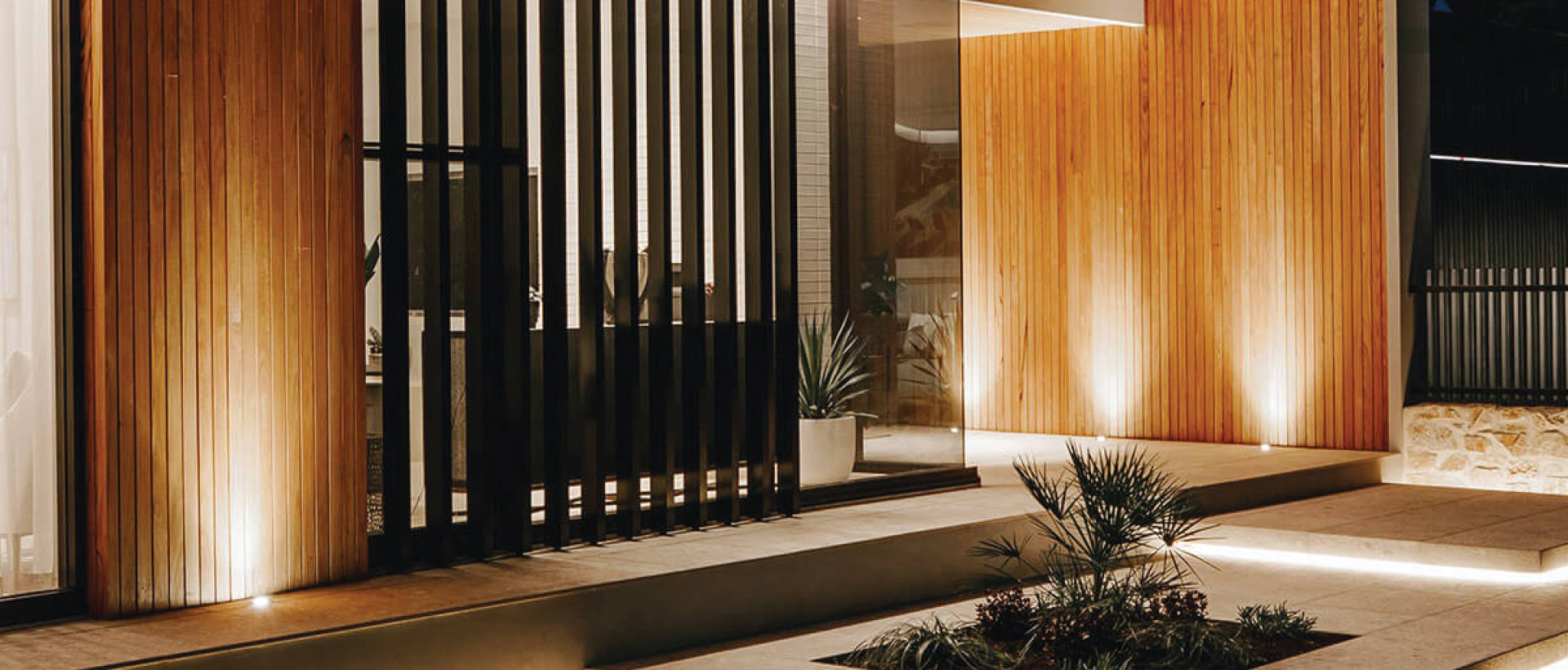

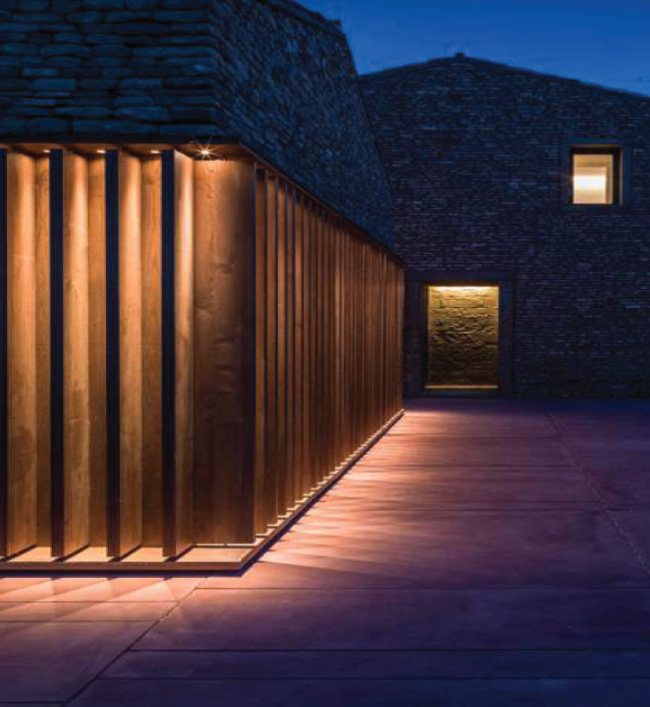

Walk ways, Facades, Landscapes, Architectural facade elements.

Accessory
• Supplied with IP67 rated connector for a secure connection to the network.
• Polypropylene mounting sleeve for easy installation.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-82421W (3-5)V, 300mA
KL-82444-8W (12-24)V, 300mA
KL-82458-12W (24-42)V, 300mA
KL-82463W (3-5)V, 600mA
KL-82479-15W (9-15)V, 900mA

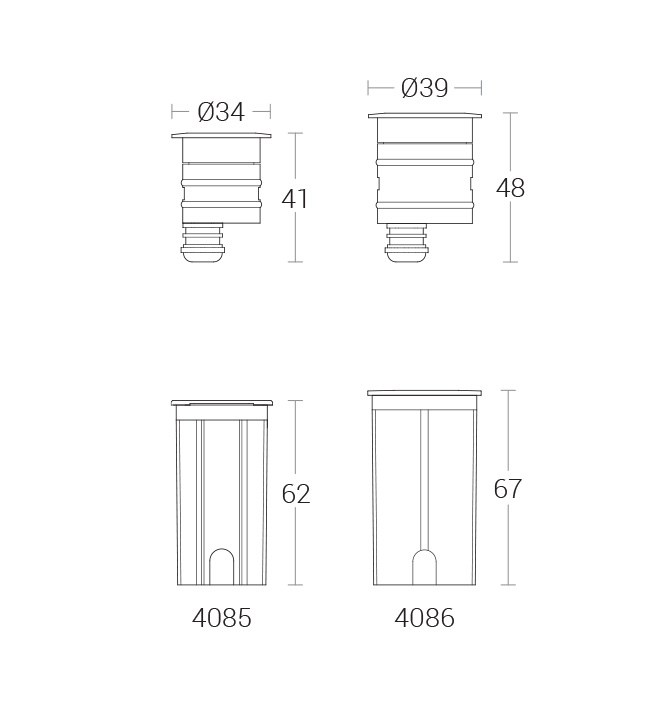

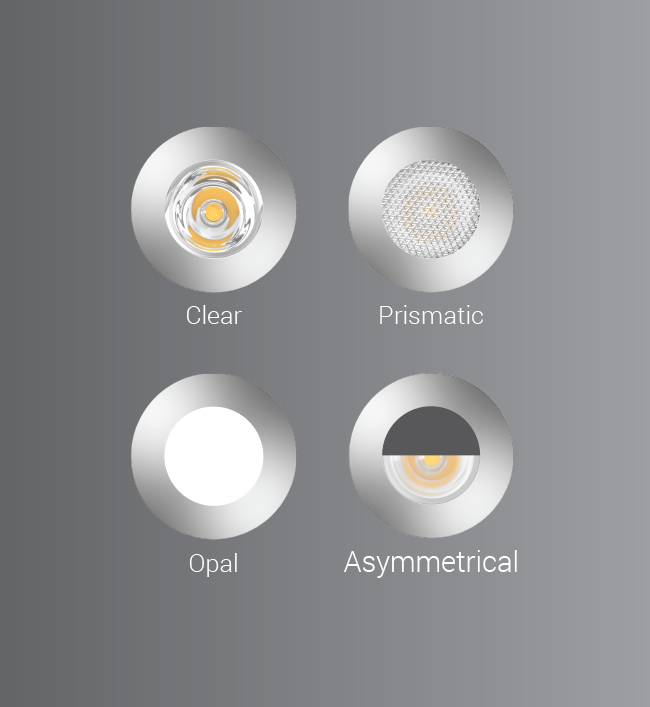

KL-40851W LED 2700K,3000K,4000K,5700K BA:40°, Clear,Opal,PrismaticØ34 x 62 mm4085.pdf
KL-4085.txt
KL-40863W LED 2700K,3000K,4000K,5700K BA:24°,8°,12°,40°,60°,40°x11°, Clear,Opal,PrismaticØ39 x 67mmKL-4086.IES
KL-4086.IES
KL-4086.PDF
KL-4086.PDF
4086.pdf
KL-4086.txt
